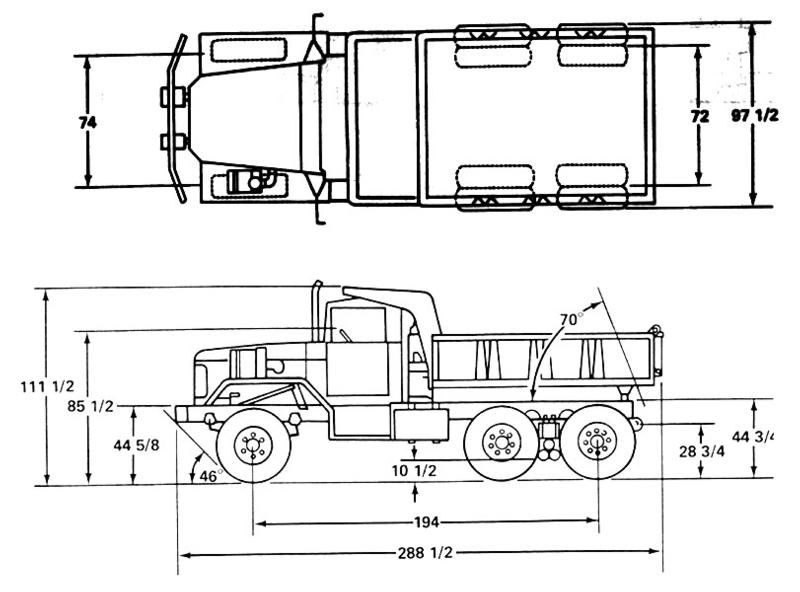

BASIC DIMENSIONS
LENGTH : 273”
WIDTH : 97.5”
HEIGHT : 112.1”
SQUARE : 185 sq ft
CUBE : 1,303 cu ft
CURB WEIGHT: 23,090 lbs
WHEEL BASE: 167”
GROUND CLEARANCE: 10.5"

MECHANICAL DATA
ENGINE : 6 cylinder, in-line, liquid cooled, compression ignition
HP: 240 at 2,100 RPM
TRANSMISSION: 5 speed, manual
TRANSFER CASE: 2 speed, manual
ELECTRICAL SYSTEM: 24 volt, negative ground, 60 amps
BRAKES : Air-hydraulic, drum

CARGO COMPARTMENT
LENGTH : 125”
WIDTH : 82"
HEIGHT : 23"
SQUARE : 71 sq ft
CUBE : 135 cu ft
CAPACITY: 10,000 lbs crosscountry, 20,000 lbs highway

FUEL DATA
TYPE : Diesel
DUAL TANK CAPACITY: 110 gallons
GALLONS PER HOUR: 11.5
EST RANGE: 440 miles, highway
FORDING DEPTH:
30" without preparation
78" with deep water fording kit fitted
